CX9628-AL Flyback Transformer

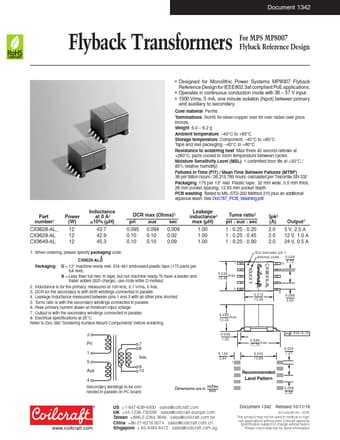

Document 1342 Flyback Transformers ForMPSMP8007 Flyback Reference Design Designed for Monolithic Power Systems MP8007 Flyback Reference Design for IEEE802.3af compliant PoE applications. Operates in continuous conduction mode with 36 57 V input. 1500 Vrms, 5 mA, one minute isolation (hipot) between primary and auxiliary to secondary. Core material Ferrite Terminations  RoHS tin-silver-copper over tin over nickel over phos bronze. Weight  6.0 6.2.

CX9628-AL-Coilcraft.pdf

Preview of CX9628-AL PDF

Datasheet Details

Part number:

CX9628-AL

Manufacturer:

Coilcraft

File Size:

133.64 KB

Description:

Flyback transformer.
