CX9629-AL Flyback Transformer

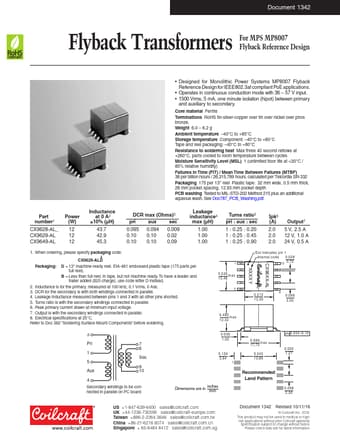

Document 1342 Flyback Transformers ForMPSMP8007 Flyback Reference Design Designed for Monolithic Power Systems MP8007 Flyback Reference Design for IEEE802.3af compliant PoE applications. Operates in continuous conduction mode with 36 57 V input. 1500 Vrms, 5 mA, one minute isolation (hipot) between primary and auxiliary to secondary. Core material Ferrite Terminations RoHS tin-silver-copper over tin over nickel over phos bronze. Weight 6.0 6.2.

CX9628-AL-Coilcraft.pdf

CX9629-AL Datasheet Preview — This datasheet PDF includes multiple part numbers: CX9629-AL, CX9628-AL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CX9629-AL, CX9628-AL

Manufacturer:

Coilcraft

File Size:

133.64 KB

Description:

Flyback transformer.

Note:

This datasheet PDF includes multiple part numbers: CX9629-AL, CX9628-AL.
Please refer to the document for exact specifications by model.
