* excellent DCR, very low leakage inductance and 1500 Vdc primary to secondary isolation. Coilcraft can also design custom planar transformers with different turns ratios and with an auxiliary winding to meet your specific requirements. For free evaluation samples, contact Coilcraft or visit www. coil
DA2025-AL Datasheet (109.05 KB)
DA2025-AL
Coilcraft
109.05 KB
Smt planar transformer.
Document 488

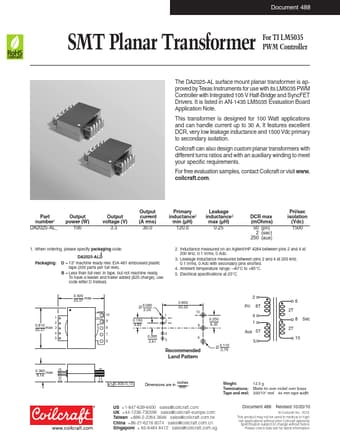

SMT Planar Transformer ForTILM5035 PWM Controller
The DA2025-AL surface mount planar transformer is approved by Texas Instruments for us.
