DA2257-AL Datasheet - Coilcraft

DA2257-AL Flyback Transformer

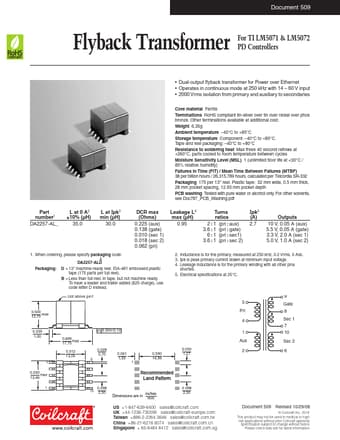

Document 509 Flyback Transformer ForTILM5071&LM5072 PD Controllers Dual-output flyback transformer for Power over Ethernet Operates in continuous mode at 250 kHz with 14 60 V input 2000 Vrms isolation from primary and auxiliary to secondaries Core material Ferrite Terminations RoHS compliant tin-silver over tin over nickel over phos bronze. Other terminations available at additional cost. Weight 6.35g Ambient temperature 40°C to +85°C Stora.

DA2257-AL-Coilcraft.pdf

DA2257-AL Datasheet Preview — Preview of DA2257-AL PDF

Datasheet Details

Part number:

DA2257-AL

Manufacturer:

Coilcraft

File Size:

121.80 KB

Description:

Flyback transformer.
