DMT2 Output Power Chokes

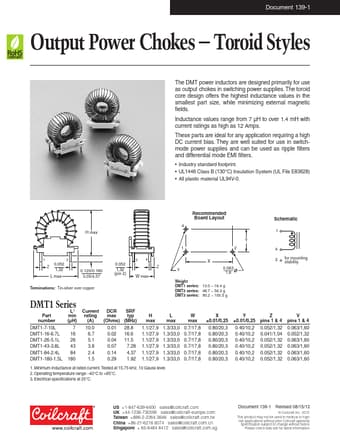

Document 139-1 Output Power Chokes Toroid Styles The DMT power inductors are designed primarily for use as output chokes in switching power supplies. The toroid core design offers the highest inductance values in the smallest part size, while minimizing external magnetic fields. Inductance values range from 7 µH to over 1.4 mH with current ratings as high as 12 Amps. These parts are ideal for any application requiring a high DC current bias. They are well suited for use in switchmode .

DMT1-coilcraft.pdf

DMT2 Datasheet Preview — This datasheet PDF includes multiple part numbers: DMT2, DMT1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DMT2, DMT1

Manufacturer:

Coilcraft

File Size:

307.60 KB

Description:

Output power chokes.

Note:

This datasheet PDF includes multiple part numbers: DMT2, DMT1.
Please refer to the document for exact specifications by model.
