DS3316P Datasheet - Coilcraft

DS3316P Shielded Power Inductors

Document 187-1 Shielded Power Inductors DS3316P   Part number1 L DCR SRF   ±20%2 max typ   Isat3   Irms4 (µH) (Ohms) (MHz) (A) (A) DS3316P-102ML_ DS3316P-152ML_ DS3316P-222ML_ DS3316P-332ML_ DS3316P-472ML_ 1.0 0.021 140 11.0 5.0 1.5 0.022 120 9.5 4.5 2.2 0.032 80 7.8 3.8 3.3 0.039 70 6.0 3.3 4.7 0.054 40 5.4 2.7 DS3316P-682ML_ 6.8 0.075 38 4.5 2.2 DS3316P-822ML_ 8.2 0.085 36 4.0 2.1 DS3316P-103ML_ 10 0.101 35 3.5 2.0 DS3316P-153ML_ 15 .

DS3316P-coilcraft.pdf

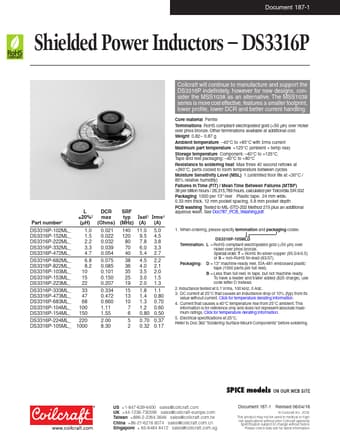

Preview of DS3316P PDF
DS3316P Datasheet Preview Page 2

Datasheet Details

Part number:

DS3316P

Manufacturer:

Coilcraft

File Size:

172.42 KB

Description:

Shielded power inductors.
