LPS8045 Shielded Power Inductors

Document 968-1 Shielded PowerInductors LPS8045 Inductance values from 6.8 to 1000 µH Low DCR; excellent current handling Core material Ferrite Weight 0.88 1.1 g Environmental RoHS compliant, halogen free Terminations RoHS compliant matte tin over nickel over silver. Other terminations available at additional cost. Ambient temperature 40°C to +85°C with (40°C rise) Irms current. Maximum part temperature +125°C (ambient + temp rise). Deratin.

LPS8045 Datasheet (405.34 KB)

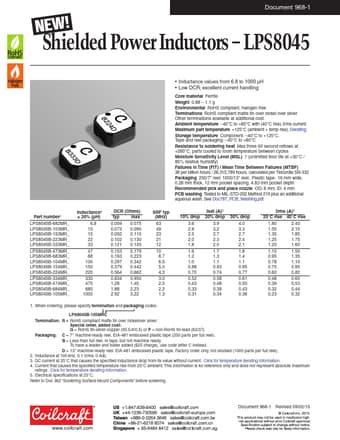

LPS8045 Datasheet Preview — Preview of LPS8045 PDF

Datasheet Details

Part number:

LPS8045

Manufacturer:

Coilcraft

File Size:

405.34 KB

Description:

Shielded power inductors.
