MSS5131-274MLC, MSS5131-222MLC Datasheet - Coilcraft

MSS5131-274MLC Shielded Power Inductors

Document 642-1 Shielded Power Inductors MSS5131 5.1 × 5.1 mm footprint; 3.1mm high shielded inductors Low DCR and excellent current handling Designer’s Kit C362 contains 3 of each value Core material Ferrite Core and winding loss See www.coilcraft.com/coreloss Terminations  RoHS compliant matte tin over nickel over phos bronze (current production) or gold over nickel over phos bronze (prior production). Other terminations available at additional cost. Weight  0.2.

MSS5131-222MLC-Coilcraft.pdf

This datasheet PDF includes multiple part numbers: MSS5131-274MLC, MSS5131-222MLC. Please refer to the document for exact specifications by model.

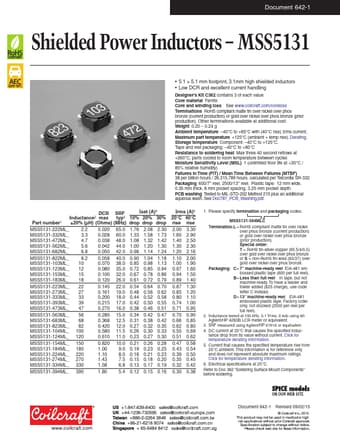

MSS5131-274MLC Datasheet Preview Page 2

Datasheet Details

Part number:

MSS5131-274MLC, MSS5131-222MLC

Manufacturer:

Coilcraft

File Size:

522.67 KB

Description:

Shielded power inductors.

Note:

This datasheet PDF includes multiple part numbers: MSS5131-274MLC, MSS5131-222MLC.
Please refer to the document for exact specifications by model.
