MSS5131-274MLD Shielded Power Inductors

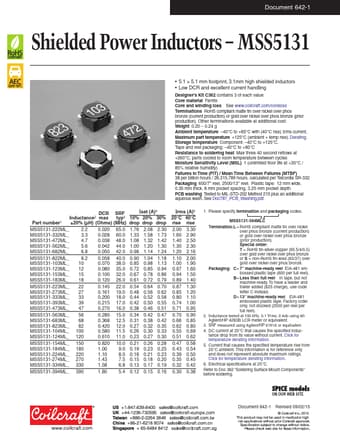

Document 642-1 Shielded Power Inductors MSS5131 5.1 × 5.1 mm footprint; 3.1mm high shielded inductors Low DCR and excellent current handling Designer’s Kit C362 contains 3 of each value Core material Ferrite Core and winding loss See www.coilcraft.com/coreloss Terminations RoHS compliant matte tin over nickel over phos bronze (current production) or gold over nickel over phos bronze (prior production). Other terminations available at additional cost. Weight 0.2.

MSS5131-274MLD Datasheet (522.67 KB)
