Document 1005F-1 Coupled Chip Inductors PFD2015 ForFlyback,SEPIC,Zeta and other applications With a footprint of 2.2 × 1.45 mm, the PFD2015 is Coilc.

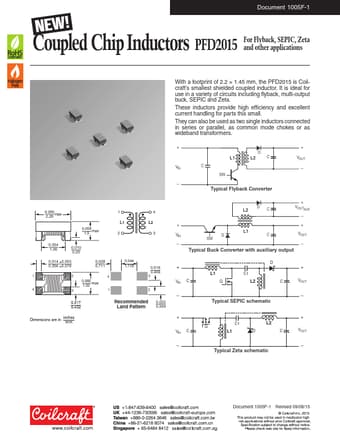

datasheet Preview Page 1 from Datasheet4u.com

PFD2015-Coilcraft.pdf

PFD2015-122ME Datasheet Preview — This datasheet PDF includes multiple part numbers: PFD2015-122ME, PFD2015. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PFD2015-122ME, PFD2015

Manufacturer:

Coilcraft

File Size:

546.60 KB

Description:

Coupled Inductors

Note:

This datasheet PDF includes multiple part numbers: PFD2015-122ME, PFD2015.
Please refer to the document for exact specifications by model.

Applications

* With a footprint of 2.2 × 1.45 mm, the PFD2015 is Coilcraft’s smallest shielded coupled inductor. It is ideal for use in a variety of circuits including flyback, multi-output buck, SEPIC and Zeta. These inductors provide high efficiency and excellent current handling for parts this small. They can
