PFD2015-332ME, PFD2015 Datasheet - Coilcraft

PFD2015-332ME Coupled Inductors

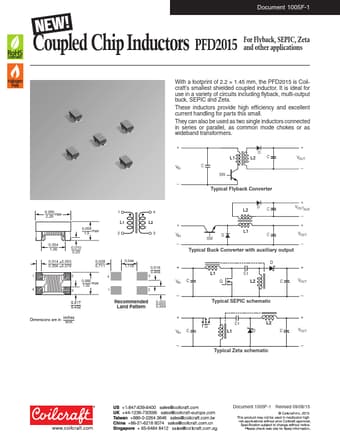

Document 1005F-1 Coupled Chip Inductors  PFD2015 ForFlyback,SEPIC,Zeta and other applications With a footprint of 2.2 × 1.45 mm, the PFD2015 is Coilcraft’s smallest shielded coupled inductor. It is ideal for use in a variety of circuits including flyback, multi-output buck, SEPIC and Zeta. These inductors provide high efficiency and excellent current handling for parts this small. They can also be used as two single inductors connected in series or parallel, as common mode chokes or as wideband.

PFD2015-Coilcraft.pdf

This datasheet PDF includes multiple part numbers: PFD2015-332ME, PFD2015. Please refer to the document for exact specifications by model.
PFD2015-332ME Datasheet Preview Page 2 PFD2015-332ME Datasheet Preview Page 3

Datasheet Details

Part number:

PFD2015-332ME, PFD2015

Manufacturer:

Coilcraft

File Size:

546.60 KB

Description:

Coupled inductors.

Note:

This datasheet PDF includes multiple part numbers: PFD2015-332ME, PFD2015.
Please refer to the document for exact specifications by model.
