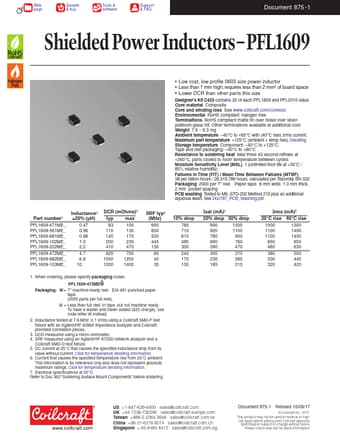

PFL1609 Shielded Power Inductors

Web page Sample & buy Tools & software Support & FAQ Document 875 -1 Shielded Power Inductors PFL1609 Low cost, low profile 0603 size power inductor Less than 1 mm high; requires less than 2 mm2 of board space Lower DCR than other parts this size Designer’s Kit C433 contains 20 of each PFL1609 and PFL2010 value Core material Composite Core and winding loss See www.coilcraft.com/coreloss Environmental RoHS compliant, halogen free Terminations RoHS.

PFL1609 Datasheet (127.81 KB)
