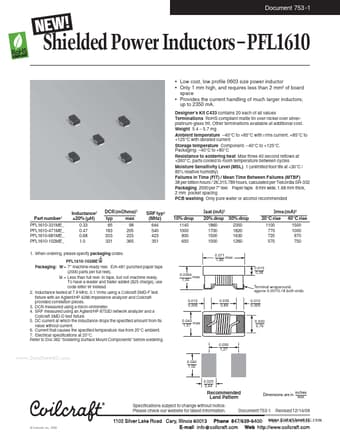

Preview of PFL1610 PDF
PFL1610 Datasheet Preview Page 2

Datasheet Details

Part number:

PFL1610

Manufacturer:

Coilcraft

File Size:

210.23 KB

Description:

Shielded power inductors.

PFL1610, Shielded Power Inductors

Document 753 -1 Shielded Power Inductors PFL1610 Low cost, low profile 0603 size power inductor Only 1 mm high, and requires less than 2 mm2 of board space Provides the current handling of much larger inductors; up to 2350 mA.

Designer’s Kit C433 contains 20 each of all values Terminations RoHS compliant matte tin over nickel over silverplatinum-glass frit.

Other terminations available at additional cost.

Weight 5.4 5.7 mg Ambient temperature
