PWB1040L Datasheet - Coilcraft

PWB1040L Surface Mount Wideband RF Transformers

Document 591-1 Surface Mount Wideband RF Transformers Cost effective surface mount wideband transformers 400 V interwinding isolation, 1/4 Watt RF input power 250 mA max current rating. Core material Ferrite Terminations RoHS compliant tin-silver-copper over tin over nickel over phos bronze. Other terminations available at additional cost. Weight 250 270 mg Ambient temperature 40°C to +85°C Storage temperature Component: 40°C to +85°C. P.

PWB1040L Datasheet (325.67 KB)

Preview of PWB1040L PDF

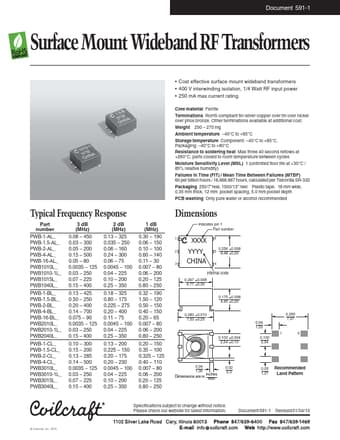

PWB1040L Datasheet Preview Page 2 PWB1040L Datasheet Preview Page 3

Datasheet Details

Part number:

PWB1040L

Manufacturer:

Coilcraft

File Size:

325.67 KB

Description:

Surface mount wideband rf transformers.
