PWB100A30, PWB100A - Non-isolated Thyristor Module

Name: PWB100A30
SKU: PWB100A30-906855

Naina Semiconductor

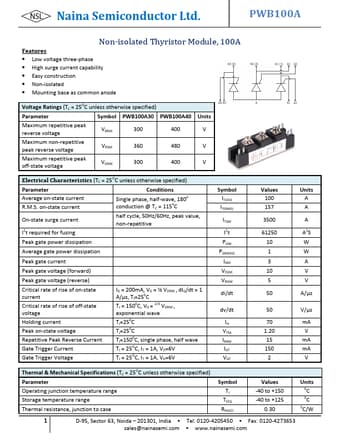

The PWB100A30 by Naina Semiconductor is a Non-isolated Thyristor Module. Below is the official datasheet preview.

Datasheet Details

Part number	PWB100A30, PWB100A
Manufacturer	Naina Semiconductor
File Size	178.73 KB
Description	Non-isolated Thyristor Module
Datasheet	PWB100A-NainaSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: PWB100A30, PWB100A. Please refer to the document for exact specifications by model.
Additional preview pages of the PWB100A30 datasheet.

Low voltage three-phase.
High surge current capability.
Easy construction.
Non-isolated.
Mounting base as common anode Voltage Ratings (TC = 25OC unless otherwise specified) Parameter Symbol PWB100A30 PWB100A40 Maximum repetitive peak reverse voltage VRRM 300 400 Maximum non-repetitive peak reverse voltage VRSM 360 480 Maximum repetitive peak off-state voltage VDRM 300 400 Units V V V Electrical Characteristics (TC = 25OC unless othe.
