PWB2040L, PWB2010-1L Datasheet - Coilcraft

PWB2040L Surface Mount Wideband RF Transformers

Document 591-1 Surface Mount Wideband RF Transformers Cost effective surface mount wideband transformers 400 V interwinding isolation, 1/4 Watt RF input power 250 mA max current rating. Core material Ferrite Terminations RoHS compliant tin-silver-copper over tin over nickel over phos bronze. Other terminations available at additional cost. Weight 250 270 mg Ambient temperature 40°C to +85°C Storage temperature Component: 40°C to +85°C. P.

PWB2010-1L_Coilcraft.pdf

This datasheet PDF includes multiple part numbers: PWB2040L, PWB2010-1L. Please refer to the document for exact specifications by model.

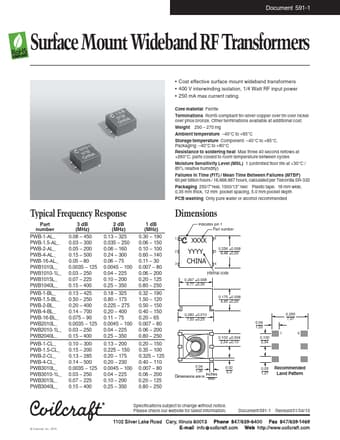

PWB2040L Datasheet Preview Page 2 PWB2040L Datasheet Preview Page 3

Datasheet Details

Part number:

PWB2040L, PWB2010-1L

Manufacturer:

Coilcraft

File Size:

325.67 KB

Description:

Surface mount wideband rf transformers.

Note:

This datasheet PDF includes multiple part numbers: PWB2040L, PWB2010-1L.
Please refer to the document for exact specifications by model.
