SCS-200L, SCS-050L Datasheet - Coilcraft

SCS-200L Current Sense Transformers

Document 1103-1 Current Sense Transformers SCS Series Sensed current up to 30 A Frequency range up to 1 MHz 500 Vrms, one minute isolation (hipot) between windings. Core material Ferrite Terminations  RoHS compliant matte tin over nickel over phos bronze Weight  3.4 3.7 g Ambient temperature  40°C to +125°C Storage temperature  Component: 40°C to +125°C. Tape and reel packaging: 40°C to +80°C Resistance to solderin.

SCS-050L-Coilcraft.pdf

This datasheet PDF includes multiple part numbers: SCS-200L, SCS-050L. Please refer to the document for exact specifications by model.

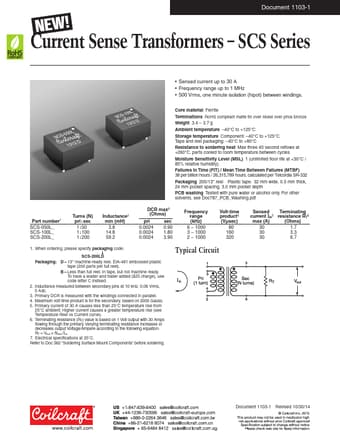

SCS-200L Datasheet Preview Page 2

Datasheet Details

Part number:

SCS-200L, SCS-050L

Manufacturer:

Coilcraft

File Size:

560.52 KB

Description:

Current sense transformers.

Note:

This datasheet PDF includes multiple part numbers: SCS-200L, SCS-050L.
Please refer to the document for exact specifications by model.
