SLC7530 Shielded Power Inductors

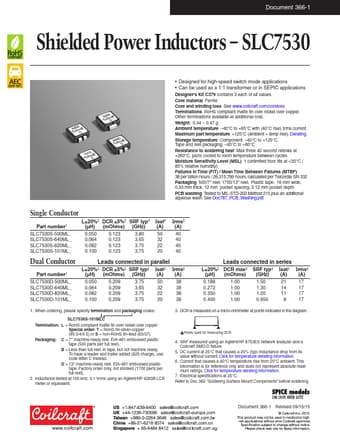

Document 366-1 Shielded Power Inductors SLC7530 Designed for high-speed switch mode applications Can be used as a 1:1 transformer or in SEPIC applications Designer’s Kit C379 contains 3 each of all values. Core material Ferrite Core and winding loss See www.coilcraft.com/coreloss Terminations RoHS compliant matte tin over nickel over copper. Other terminations available at additional cost. Weight: 0.44 0.47 g Ambient temperature 40°C to +85°.

SLC7530 Datasheet (420.47 KB)
