SLC7015R

White LED Driver

SLC7015R Features

* Quasi-resonant switching mode

* Maximum frequency 400kHz

* VCC pin: under voltage protection

* SOURCE pin: Leading-Edge-Blanking function

* PWM and ADIM operating

* FAIL signal output 1.2 Package SOP8 W(Typ) x D(Typ) x H(Max) 5.00mm x 6.20mm x 1.71mm

* Applications

SLC7015R General Description

SLC7015R is a high efficiency driver for white LEDs and designed for large LCDs. SLC7015R is built-in a quasi-resonant control method DCDC converter that employ an array of LEDs as the light source. And owing to the external current setting resistance, a power supply design with a high degree of fre.

SLC7015R Datasheet (402.69 KB)

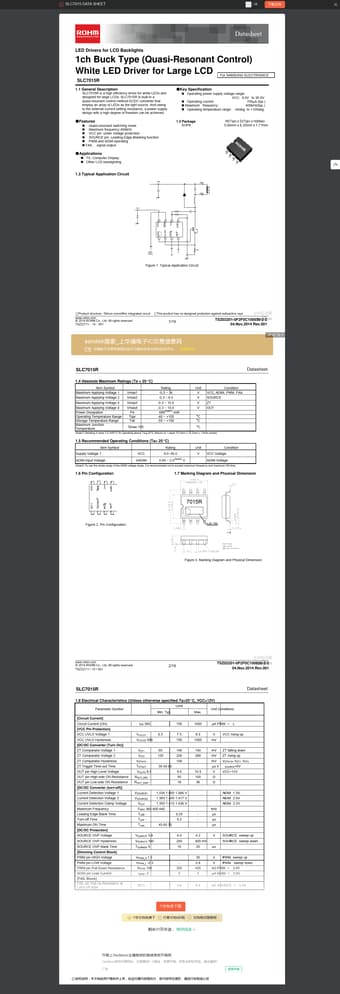

Preview of SLC7015R PDF

Datasheet Details

Part number:

SLC7015R

Manufacturer:

ROHM ↗

File Size:

402.69 KB

Description:

White led driver.
SLC7015 DATA SHEET / 34 Datasheet LED Drivers for LCD Backlights 1ch Buck Type (Quasi-Resonant Control) White LED Driver for Large LCD For SAMSU.
