TRF-RJ45-8 Modular Jack EMI Filters

Document 154 Modular Jack EMI Filters This product is not RoHS-compliant. Contact Coilcraft for current status or possible alternatives. Eliminating common mode EMI from telephone lines and LANs can be done quickly and easily with these plug-in filter modules. One, two, and four line (two, four and eight wire) versions are available with RJ11, RJ14, or RJ45 standard terminations. They’re designed to help meet FCC Part 15 and 68 as well as European CCITT and CISPR-22 requirements. Part A B .

TRF-RJ11-Coilcraft.pdf

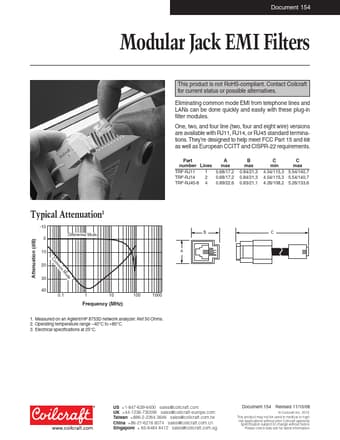

TRF-RJ45-8 Datasheet Preview — This datasheet PDF includes multiple part numbers: TRF-RJ45-8, TRF-RJ11. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TRF-RJ45-8, TRF-RJ11

Manufacturer:

Coilcraft

File Size:

189.53 KB

Description:

Modular jack emi filters.

Note:

This datasheet PDF includes multiple part numbers: TRF-RJ45-8, TRF-RJ11.
Please refer to the document for exact specifications by model.
