UA7962-AL 81W PoE Transformer

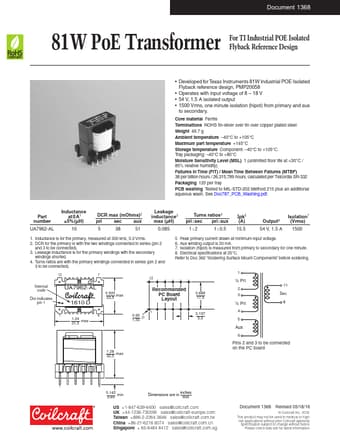

Document 1368 81W PoE Transformer ForTIIndustrialPOEIsolated Flyback Reference Design Developed for Texas Instruments 81W Industrial POE Isolated Flyback reference design, PMP20058 Operates with input voltage of 8 18 V 54 V, 1.5 A isolated output 1500 Vrms, one minute isolation (hipot) from primary and aux to secondary. Core material Ferrite Terminations ROHS tin-silver over tin over copper plated steel Weight 49.7 g Ambient temperature <.

UA7962-AL-Coilcraft.pdf

UA7962-AL Datasheet Preview — Preview of UA7962-AL PDF

Datasheet Details

Part number:

UA7962-AL

Manufacturer:

Coilcraft

File Size:

105.93 KB

Description:

81w poe transformer.
