CDBFR00340 - SMD Schottky Barrier Diode

Name: CDBFR00340
SKU: CDBFR00340-589585

Comchip Technology

The CDBFR00340 by Comchip Technology is a SMD Schottky Barrier Diode. Below is the official datasheet preview.

Datasheet Details

Part number	CDBFR00340
Manufacturer	Comchip Technology
File Size	77.96 KB
Description	SMD Schottky Barrier Diode
Datasheet	CDBFR00340_ComchipTechnology.pdf

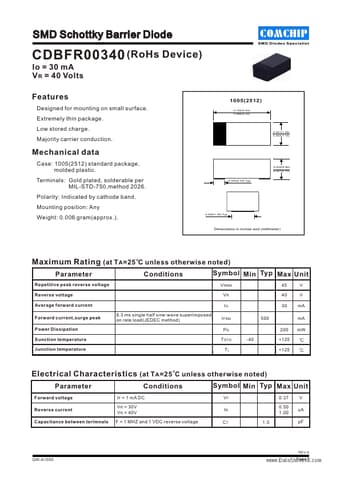

Additional preview pages of the CDBFR00340 datasheet.

Designed for mounting on small surface. Extremely thin package. Low stored charge. Majority carrier conduction. 0.051(1.30) 0.043(1.10) 1005(2512) 0.102(2.60) 0.095(2.40) Mechanical data Case: 1005(2512) standard package, molded plastic. Terminals: Gold plated, solderable per MIL-STD-750,method 2026. Polarity: Indicated by cathode band. Mounting position: Any Weight: 0.006 gram(approx. ). 0.040(1.00) Typ. 0.020(0.50) Typ. 0.035(0.90) 0.027(0.70) Dimensions in inches and (millimeter) Maximum R.
