CDBFR0130 - SMD Schottky Barrier Diode

Name: CDBFR0130
SKU: CDBFR0130-589586

Comchip Technology

The CDBFR0130 by Comchip Technology is a SMD Schottky Barrier Diode. Below is the official datasheet preview.

Datasheet Details

Part number	CDBFR0130
Manufacturer	Comchip Technology
File Size	79.17 KB
Description	SMD Schottky Barrier Diode
Datasheet	CDBFR0130_ComchipTechnology.pdf

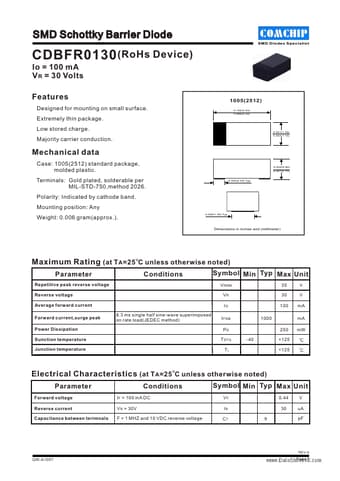

Additional preview pages of the CDBFR0130 datasheet.

Designed for mounting on small surface. Extremely thin package. Low stored charge. Majority carrier conduction. 0.051(1.30) 0.043(1.10) 1005(2512) 0.102(2.60) 0.095(2.40) Mechanical data Case: 1005(2512) standard package, molded plastic. Terminals: Gold plated, solderable per MIL-STD-750,method 2026. Polarity: Indicated by cathode band. Mounting position: Any Weight: 0.006 gram(approx. ). 0.040(1.00) Typ. 0.020(0.50) Typ. 0.035(0.90) 0.027(0.70) Dimensions in inches and (millimeter) Maximum R.
