CDSF355 - SMD Switching Diode

Comchip Technology

📥 Download Datasheet

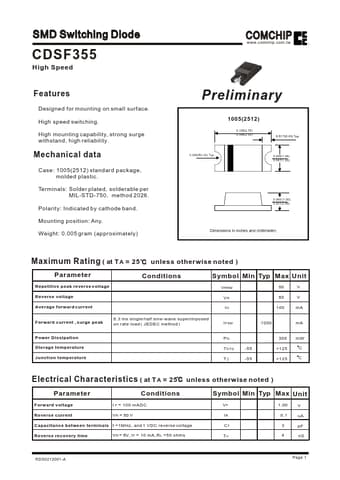

CDSF355 Datasheet Preview — Preview of CDSF355 PDF

datasheet Preview Page 2

Datasheet Details

Part number	CDSF355
Manufacturer	Comchip Technology
File Size	70.49 KB
Description	SMD Switching Diode
Datasheet	CDSF355_ComchipTechnology.pdf

CDSF355 Product details

Features

Designed for mounting on small surface. High speed switching. High mounting capability, strong surge withstand, high reliability. Preliminary 1005(2512) 0.106(2.70) 0.098(2.50) 0.017(0.43) Typ Mechanical data Case: 1005(2512) standard package, molded plastic. Terminals: Solder plated, solderable per MIL-STD-750, method 2026. Polarity: Indicated by cathode band. Mounting position: Any. Weight: 0.005 gram (approximately) 0.008(R0.20) Typ. 0.055(1.40) 0.047(1.20) 0.040 (1.00) 0.031(0.80) Dime.
