CDSF4448 - SMD Switching Diode

Comchip Technology

📥 Download Datasheet

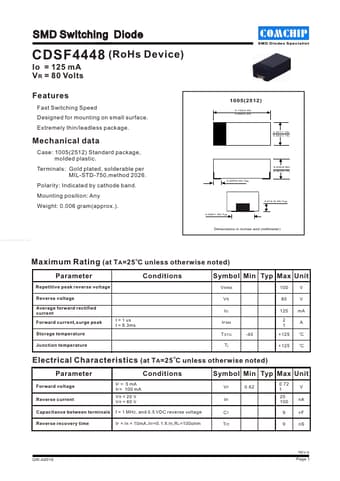

CDSF4448 Datasheet Preview — Preview of CDSF4448 PDF

datasheet Preview Page 2

Datasheet Details

Part number	CDSF4448
Manufacturer	Comchip Technology
File Size	100.07 KB
Description	SMD Switching Diode
Datasheet	CDSF4448_ComchipTechnology.pdf

CDSF4448 Product details

Features

Fast Switching Speed Designed for mounting on small surface. Extremely thin/leadless package. 0.051(1.30) 0.043(1.10) 1005(2512) 0.102(2.60) 0.095(2.40) Mechanical data Case: 1005(2512) Standard package, molded plastic. Terminals: Gold plated, solderable per MIL-STD-750,method 2026. 0.020(0.50) Typ. 0.035(0.90) 0.027(0.70) Polarity: Indicated by cathode band. Mounting position: Any 0.012 (0.30) Typ. Weight: 0.006 gram(approx. ). 0.040(1.00) Typ. Dimensions in inches and (millimeter) www. Data.
