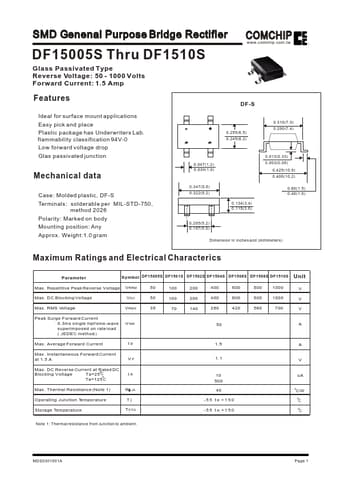

* Ideal for surface mount applications Easy pick and place Plastic package has Underwriters Lab. flammability classification 94V-0 Low forward voltage drop Glas passivated junction DF-S 0.310(7.9) + 0.255(6.5) ~ ~ 0.245(6.2) 0.290(7.4) 0.013(0.33) 0.047(1.2) 0.039(1.0) 0.003(0.08) 0.425(10.8) 0.400(
DF1504S
Comchip Technology
52.60 KB
Smd genenal purpose bridge rectifier.
SMD Genenal Purpose Bridge Rectifier
COMCHIP
www.comchip.com.tw
DF15005S Thru DF1510S
Glass Passivated Type Reverse Voltage: 50 - 1000 Volts Forward.
📁 Related Datasheet
DF1504 - Glass Passivated Bridge Rectifier
(Eris)
DF15005 thru DF1510
.031(0.8) .023(0.6)
.256(6.5) .244(6.2)
.335(8.5) .307(7.8)
Glass Passivated Bridge Rectifier
.102(2.6) .089(2.2)
.323(8.2) .
DF1504 - Miniature Glass Passivated Single-Phase Bridge Rectifier
(GOOD-ARK)
Features
■ Ideal for automated placement ■ Applicable for automative insertion ■ High surge current capability ■ Solder Dip 260°C,10 seconds
DF15005 .
DF1504 - 1.5A Single-Phase Glass Passivated Bridge Rectifiers
(SEP ELECTRONIC)
SEP ELECTRONIC CORP.
DF15005 thru DF1510
1.5 A Single-Phase Glass Passivated Bridge Rectifiers
Rectifier Reverse Voltage 50 to 1000V
Features
This .
DF1504 - GLASS PASSIVATED BRIDGE RECTIFIER
(ZOWIE)
DF1502 THRU DF1510
GLASS PASSIVATED BRIDGE RECTIFIER
Reverse Voltage - 200 to 1000 Volts
Forward Current - 1.5 Amperes
DFM
-+ .031(0.8) .024(0.6).
DF1504 - Single-Phase Bridge Rectifiers
(Formosa MS)
Bridge Rectifier
DF15005 THRU DF1510
Formosa MS
List List .
DF1504 - GLASS PASSIVATED BRIDGE RECTIFIERS
(KD)
DF15005 THRU DF1510
GLASS PASSIVATED BRIDGE RECTIFIERS
Reverse Voltage - 50 to 1000 Volts Forward Current - 1.5 Ampere
FEATURES
● Plastic package use.
DF1504 - Glass Passivated Bridge Rectifiers
(HY)
.hygroup..tw
DF15005 THRU DF1510
Glass Passivated Bridge Rectifiers
Features
● Glass passivated chip ● High surge forward current capabilit.
DF1504 - GLASS PASSIVATED BRIDGE RECTIFIER
(JINAN JINGHENG ELECTRONICS)
R SEMICONDUCTOR
FEATURES
DB151(DF15005) THRU DB157(DF1510)
GLASS PASSIVATED BRIDGE RECTIFIER
Reverse Voltage: 50 to 1000 Volts Forward Current: 1.5 A.
