DF1504S-G, DF15005S-G (DF15005S-G - DF1510S-G) SMD General Purpose Bridge Rectifier

📥 Download Datasheet  Datasheet Preview Page 1

Description

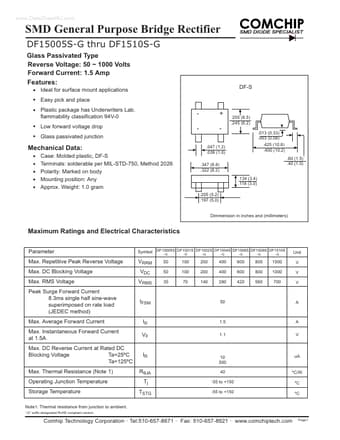

www.DataSheet4U.com SMD General Purpose Bridge Rectifier DF15005S-G thru DF1510S-G Glass Passivated Type Reverse Voltage: 50 ~ 1000 Volts Forward Cur.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DF1504S-G, DF15005S-G. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Specifications

Part number
DF1504S-G, DF15005S-G
Manufacturer
Comchip Technology
File Size
77.64 KB
Datasheet
DF15005S-G_ComchipTechnology.pdf
Description
(DF15005S-G - DF1510S-G) SMD General Purpose Bridge Rectifier
Note
This datasheet PDF includes multiple part numbers: DF1504S-G, DF15005S-G.
Please refer to the document for exact specifications by model.

Applications

* Easy pick and place Plastic package has Underwriters Lab. flammability classification 94V-0 Low forward voltage drop Glass passivated junction DF-S - + .047 (1.2) .039 (1.0) .347 (8.8) .322 (8.2) .255 (8.5) .245 (6.2) .013 (0.33) .003 (0.08) .425 (10.8) .400 (10.2) .60 (1.5) .40 (1.0) .134 (3.4)
