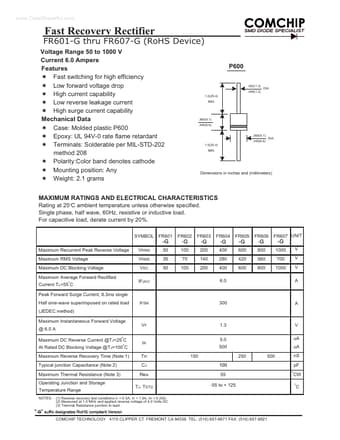

FR603-G, FR601-G - (FR601-G - FR607-G) Fast Recovery Rectifier

Comchip Technology

Datasheet Details

Part number: FR603-G, FR601-G
Manufacturer: Comchip Technology
File Size: 100.72 KB
Datasheet: FR601-G_ComchipTechnology.pdf
Description: (FR601-G - FR607-G) Fast Recovery Rectifier
Note: This datasheet PDF includes multiple part numbers: FR603-G, FR601-G.
Please refer to the document for exact specifications by model.

Fast switching for high efficiency Low forward voltage drop High current capability Low reverse leakage current High surge current capability Mechanical Data Case: Molded plastic P600 Epoxy: UL 94V-0 rate flame retardant Terminals: Solderable per MIL-STD-202 method 208 Polarity:Color band denotes cathode Mounting position: Any Weight: 2.1 grams P600 .052(1.3) .048(1.2) 1.0(25.4) MIN. Fast Recovery Rectifier DIA. .360(9.1) .340(8.6) .360(9.1) .340(8.6) 1.0(25.4) MIN. DIA. Dimensions in inche.
