FR601 - 6.0A Fast Recovery Silicon Rectifier

Datasheet Summary

Features

  • Diffused junction Fast switching for high efficiency High current capability and low Forward Voltage Drop Surge overload rating to 300A peak Low reverse leakage current Plastic material has UL flammability classification 94V-0 Mechanical Data Case: Molded plastic Terminals: Solder plated solderable per MIL-STD-202, Method 208 Polarity: Cathode band Mounting Position: Any Weight: 2.1 grams (approx) .052(1.3) .048(1.2) 1.0(25.4) MIN. .340(9.1) .360(8.6) .340(9.1) .360(8.6) 1.0(25.4) MIN. All.

📥 Download Datasheet

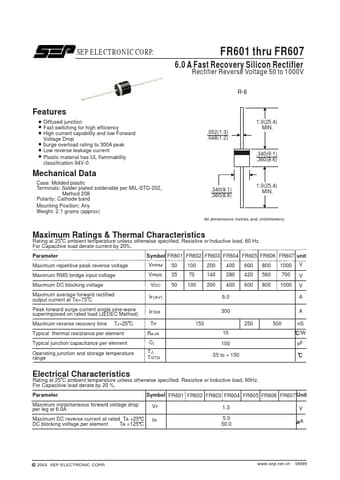

Datasheet preview – FR601

Datasheet Details

Part number FR601
Manufacturer SEP ELECTRONIC
File Size 33.32 KB
Description 6.0A Fast Recovery Silicon Rectifier
Datasheet download datasheet FR601 Datasheet
Additional preview pages of the FR601 datasheet.

📁 Similar Datasheet

  • FR601 - FAST RECOVERY RECTIFIERS (Sangdest Microelectronics)
  • FR601 - FAST RECOVER RECTIFIER (MIC)
  • FR601 - 6A Leaded Type Fast Rectifiers (CITC)
  • FR601 - 6.0A FAST RECOVERY DIODE (WON-TOP)
  • FR601 - FAST RECOVERY RECTIFIER DIODES (EIC)
  • FR601 - FAST RECOVERY RECTIFIER (Rectron)
  • FR601 - TECHNICAL SPECIFICATIONS OF FAST RECOVERY RECTIFIER (Dc Components)
  • FR601 - 6.0A FAST RECOVERY RECTIFIER (Diodesorporated)
  • FR601 - 6.0 AMP FAST RECOVERY RECTIFIERS (Formosa MS)
  • FR601 - FAST RECOVERY RECTIFIER (GOOD-ARK Electronics)
Other Datasheets by SEP ELECTRONIC
  • FR602 - 6.0A Fast Recovery Silicon Rectifier
  • FR603 - 6.0A Fast Recovery Silicon Rectifier
  • FR604 - 6.0A Fast Recovery Silicon Rectifier
  • FR605 - 6.0A Fast Recovery Silicon Rectifier
  • FR606 - 6.0A Fast Recovery Silicon Rectifier
  • FR607 - 6.0A Fast Recovery Silicon Rectifier

Full PDF Text Transcription

Click to expand full text
SEP ELECTRONIC CORP. FR601 thru FR607 6.0 A Fast Recovery Silicon Rectifier Rectifier Reverse Voltage 50 to 1000V R-6 Features Diffused junction Fast switching for high efficiency High current capability and low Forward Voltage Drop Surge overload rating to 300A peak Low reverse leakage current Plastic material has UL flammability classification 94V-0 Mechanical Data Case: Molded plastic Terminals: Solder plated solderable per MIL-STD-202, Method 208 Polarity: Cathode band Mounting Position: Any Weight: 2.1 grams (approx) .052(1.3) .048(1.2) 1.0(25.4) MIN. .340(9.1) .360(8.6) .340(9.1) .360(8.6) 1.0(25.4) MIN.
