SR502-G

Schottky Barrier Rectifier

SR502-G Features

* -Fast switching. -Low forward voltage, high current capability. -Low power loss, high efficiency. -High current surge capability. -High temperature soldering guaranteed: 250 OC/10 seconds, 0.375” (9.5mm) lead length at 5lbs (2.3kg) tension. 1.0(25.4) min. 0.052(1.30) 0.048(1.20) DO-27 0.375(9.50)

SR502-G Datasheet (71.92 KB)

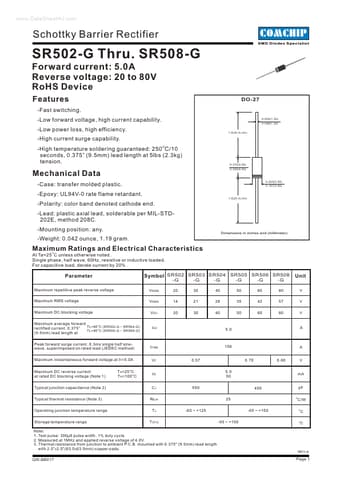

Preview of SR502-G PDF

Datasheet Details

Part number:

SR502-G

Manufacturer:

Comchip Technology

File Size:

71.92 KB

Description:

Schottky barrier rectifier.
www.DataSheet4U.com Schottky Barrier Rectifier COMCHIP SMD Diodes Specialist SR502-G Thru. SR508-G Forward current: 5.0A Reverse voltage: 20 to 80V.
