SR8A100F-G, SR8A20F-G - (SR8A20F-G - SR8A100F-G) Schottky Barrier Rectifiers

Comchip Technology

Datasheet Details

Part number: SR8A100F-G, SR8A20F-G
Manufacturer: Comchip Technology
File Size: 77.65 KB

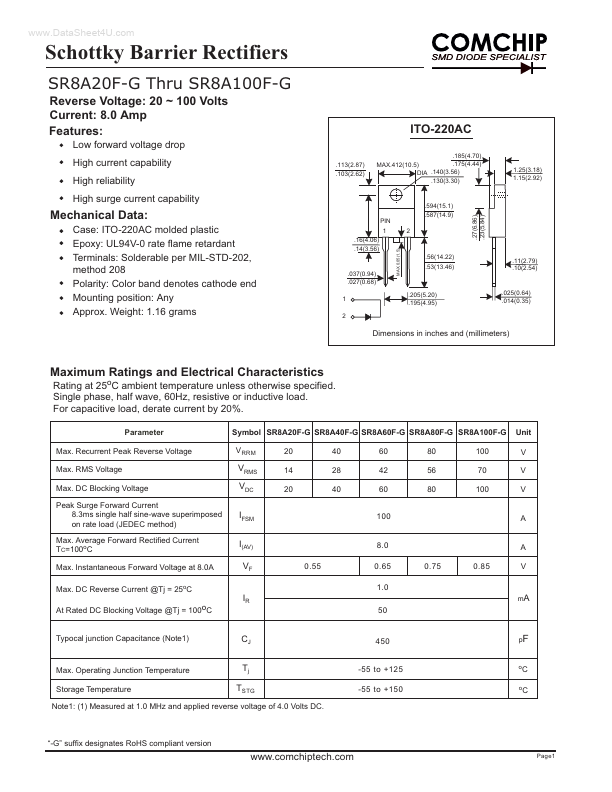

Datasheet: SR8A20F-G_ComchipTechnology.pdf
Description: (SR8A20F-G - SR8A100F-G) Schottky Barrier Rectifiers
Note: This datasheet PDF includes multiple part numbers: SR8A100F-G, SR8A20F-G.
Please refer to the document for exact specifications by model.

Low forward voltage drop High current capability High reliability High surge current capability PIN 1 MAX.0.05(1.5) ITO-220AC .113(2.87) .103(2.62) .185(4.70) .175(4.44) MAX.412(10.5) DIA .140(3.56) .130(3.30) 1.25(3.18) 1.15(2.92) Case: ITO-220AC molded plastic Epoxy: UL94V-0 rate flame retardant Terminals: Solderable per MIL-STD-202, method 208 Polarity: Color band denotes cathode end Mounting position: Any Approx. Weight: 1.16 grams 2 .16(4.06) .14(3.56) .56(14.22) .53(13.46) .27(6.86.
