TV04A240JB-HF, TV04A5V0-HF SMD Transient Voltage Suppressor

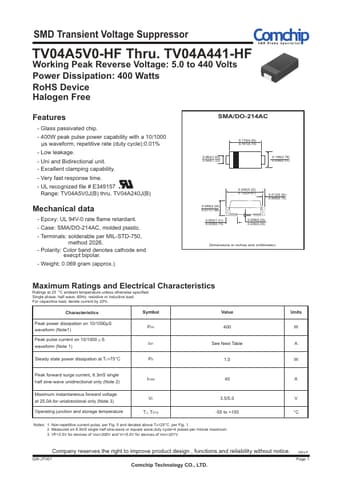

📥 Download Datasheet Datasheet Preview Page 1

Description

SMD Transient Voltage Suppressor TV04A5V0-HF Thru.TV04A441-HF Working Peak Reverse Voltage: 5.0 to 440 Volts Power Dissipation: 400 Watts RoHS Device.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TV04A240JB-HF, TV04A5V0-HF. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
TV04A240JB-HF, TV04A5V0-HF
Manufacturer
Comchip Technology
File Size
115.32 KB
Datasheet
TV04A5V0-HF-ComchipTechnology.pdf
Description
SMD Transient Voltage Suppressor
Note
This datasheet PDF includes multiple part numbers: TV04A240JB-HF, TV04A5V0-HF.
Please refer to the document for exact specifications by model.

Features

* - Glass passivated chip. - 400W peak pulse power capability with a 10/1000 µs waveform, repetitive rate (duty cycle):0.01% - Low leakage. - Uni and Bidirectional unit. - Excellent clamping capability. - Very fast response time. - UL recognized file # E349157 R - Range: TV04A5V0J(B) thru. TV04A240J(B
