* - Glass passivated chip. - 400W peak pulse power capability with a 10/1000 µs waveform, repetitive rate (duty cycle):0.01% - Low leakage. - Uni and Bidirectional unit. - Excellent clamping capability. - Very fast response time. - UL recognized file # E349157 R - Range: TV04A5V0J(B) thru. TV04A240J(B
TV04A441JB-HF Datasheet (115.32 KB)
TV04A441JB-HF
Comchip Technology
115.32 KB
Smd transient voltage suppressor.

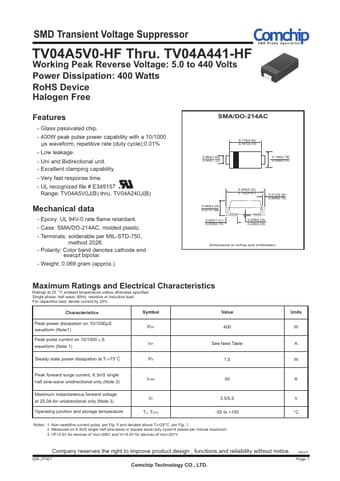

SMD Transient Voltage Suppressor
TV04A5V0-HF Thru. TV04A441-HF
Working Peak Reverse Voltage: 5.0 to 440 Volts Power Dissipation: 400 Watts RoHS Device.
