TV04A450J-HF, TV04A5V0-HF Datasheet - Comchip Technology

TV04A450J-HF SMD Transient Voltage Suppressor

TV04A450J-HF Features

* - Glass passivated chip. - 400W peak pulse power capability with a 10/1000 µs waveform, repetitive rate (duty cycle):0.01% - Low leakage. - Uni and Bidirectional unit. - Excellent clamping capability. - Very fast response time. - UL recognized file # E349157 R - Range: TV04A5V0J(B) thru. TV04A240J(B

TV04A5V0-HF-ComchipTechnology.pdf

This datasheet PDF includes multiple part numbers: TV04A450J-HF, TV04A5V0-HF. Please refer to the document for exact specifications by model.

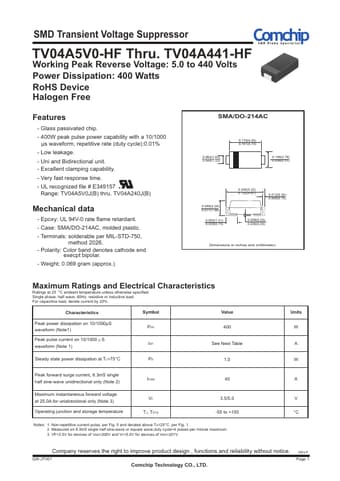

TV04A450J-HF Datasheet Preview Page 2 TV04A450J-HF Datasheet Preview Page 3

Datasheet Details

Part number:

TV04A450J-HF, TV04A5V0-HF

Manufacturer:

Comchip Technology

File Size:

115.32 KB

Description:

Smd transient voltage suppressor.

Note:

This datasheet PDF includes multiple part numbers: TV04A450J-HF, TV04A5V0-HF.
Please refer to the document for exact specifications by model.
