ABS1-HF - SMD Glass Passivated Bridge Rectifiers

Product Overview

Comchip

Part number	ABS1-HF
Manufacturer	Comchip
File Size	96.70 KB
Description	SMD Glass Passivated Bridge Rectifiers
Datasheet	ABS1-HF Datasheet
Note	This datasheet PDF includes multiple part numbers: ABS1-HF, ABS05-HF. Please refer to the document for exact specifications by model.

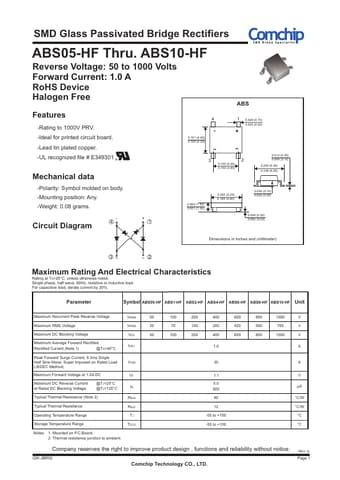

Additional preview pages of the ABS1-HF datasheet.

-Rating to 1000V PRV. -Ideal for printed circuit board. -Reliable low cost construction utilizing molded plastic technique results in inexpensive product. -Small size, simple installation -High surge current capability -Pb free product. 0.205 (5.20) 0.189 (4.80) 0.006 (0.15) 0.002 (0.05) 0.181 (4.60) 0.165 (4.20) ABS 0.028 (0.70) 0.020 (0.50) - + ~ 0.165 (4.20) 0.150 (3.80) ~ 0.012 (0.30) 0.004 (0.10) 0.252 (6.40) 0.236 (6.00) Mechanical data -Polarity: Symbol molded on body. -Mounting pos.
