ABS10, ABS2 - SINGLE-PHASE BRIDGE RECTIFIER

ABS10 Description

ABS2-ABS10 SINGLE-PHASE BRIDGE RECTIFIER VOLTAGE RANGE: 200 - 1000V CURRENT: 1.0A .

ABS10 Features

* ! Glass passivated junction ! Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique ! High temperature soldering guaranteed: 260 o C / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. , ( 2.3 kg ) tension ! Small size, simple installation Pure tin plated

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ABS10, ABS2. Please refer to the document for exact specifications by model.

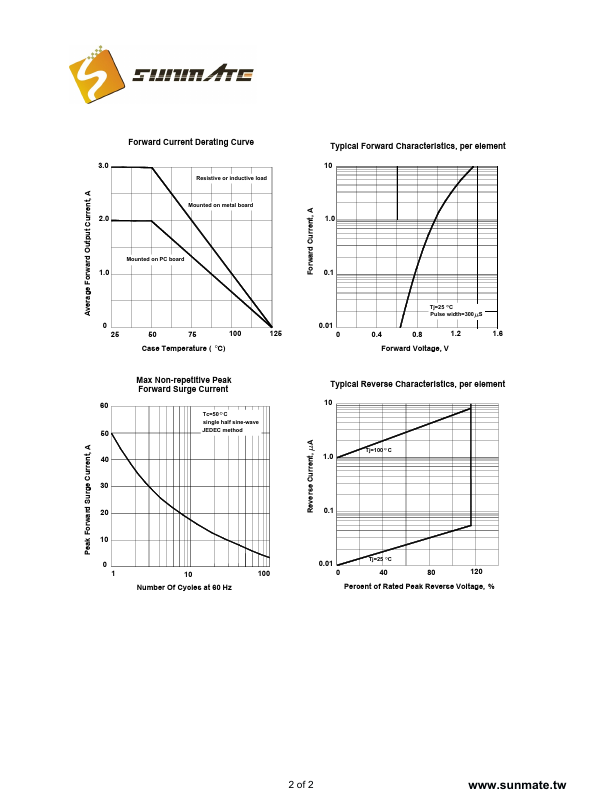

datasheet Preview Page 2

Datasheet Details

Part number
ABS10, ABS2
Manufacturer
Sunmate
File Size
1.30 MB
Datasheet
ABS2-Sunmate.pdf
Description
SINGLE-PHASE BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: ABS10, ABS2.
Please refer to the document for exact specifications by model.
