ABS8 - SINGLE-PHASE BRIDGE RECTIFIER

Product Overview

Sunmate

Part number	ABS8
Manufacturer	Sunmate
File Size	1.30 MB
Description	SINGLE-PHASE BRIDGE RECTIFIER
Datasheet	ABS8 Datasheet
Note	This datasheet PDF includes multiple part numbers: ABS8, ABS2. Please refer to the document for exact specifications by model.

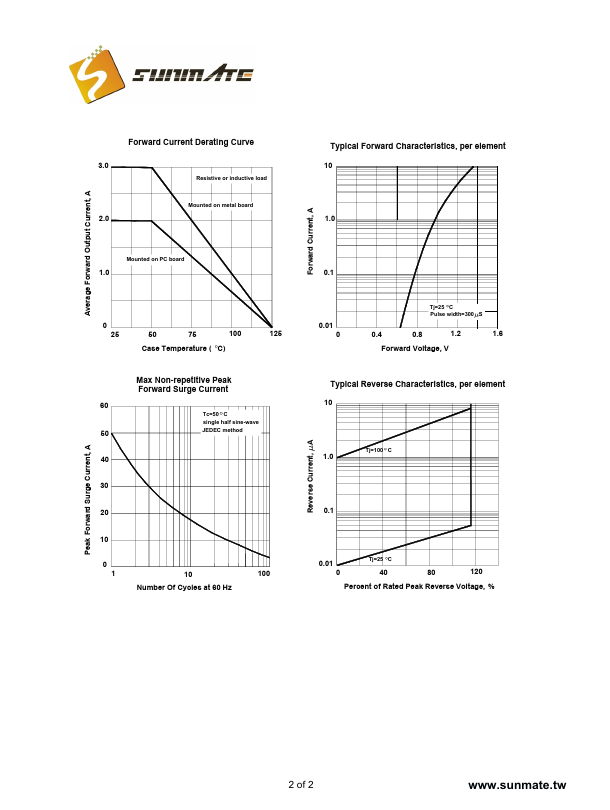

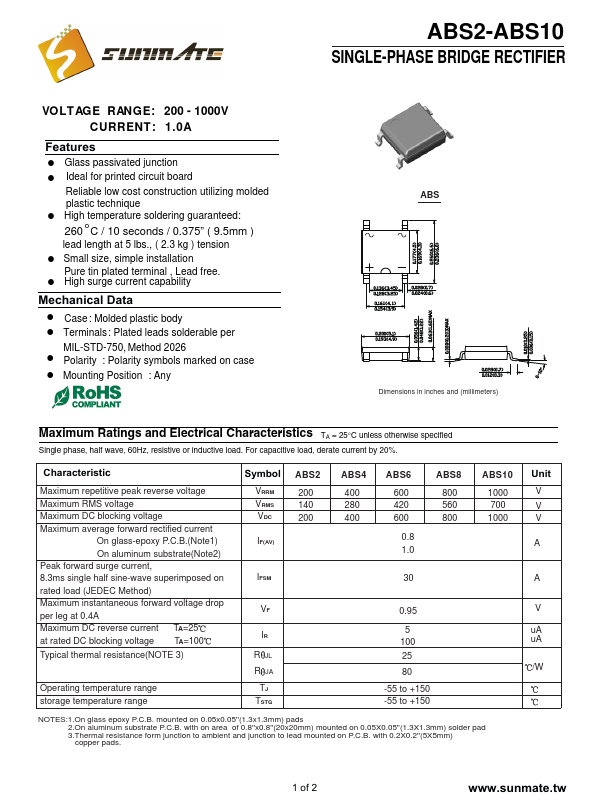

Additional preview pages of the ABS8 datasheet.

! Glass passivated junction ! Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique ! High temperature soldering guaranteed: 260 o C / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. , ( 2.3 kg ) tension ! Small size, simple installation Pure tin plated terminal , Lead free. ! High surge current capability Mechanical Data ! Case : Molded plastic body ! Terminals: Plated leads solderable per MIL-STD-750, Method 2026 ! Polarity : Polarity symbols mark.
