ABS8-T

Glass Passivated Bridge Rectifier

ABS8-T Features

* - Glass passivated junction - Ideal for automated placement - Reliable low cost construction utilizing molded plastic technique - High surge current capability - Moisture sensitivity level: level 1, per J-STD-020 - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen

ABS8-T General Description

Green compound RATINGS AND CHARACTERISTICS CURVES (TA=25℃ unless otherwise noted) AVERAGE FORWARD CURRENT (A) FIG.1 MAXIMUM FORWARD CURRENT DERATING CURVE 1.2 1 0.8 0.6 0.4 0.2 0 0 30 60 90 120 AMBIENT TEMPERATURE (oC) 150 INSTANTANEOUS REVERSE CURRENT (μA) FIG. 2 TYPICAL REVERSE CHARACTERISTI.

ABS8-T Datasheet (285.23 KB)

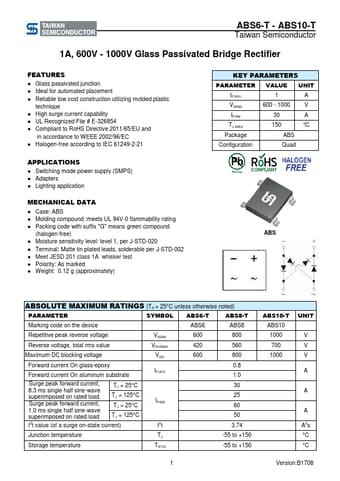

Preview of ABS8-T PDF

Datasheet Details

Part number:

ABS8-T

Manufacturer:

Taiwan Semiconductor

File Size:

285.23 KB

Description:

Glass passivated bridge rectifier.
