ABS15J - Standard Bridge Rectifier

ABS15J Description

ABS15J * ABS15M Taiwan Semiconductor 1.5A, 600V - 1000V Standard Bridge Rectifier .
only.

ABS15J Features

* AEC-Q101 qualified available
* Glass passivated chip junction
* Ideal for automated placement
* Reliable low cost construction utilizing molded plastic technique
* High surge current capability
* Moisture sensitivity level: level 1, per J-STD-020
* RoHS Compliant

ABS15J Applications

* Switching mode power supply (SMPS)
* Adapters
* Lighting application KEY PARAMETERS PARAMETER VALUE UNIT IF VRRM 1.5 A 600 - 1000 V IFSM TJ MAX Package 40 A 150 °C ABS Configuration Quad MECHANICAL DATA
* Case: ABS
* Molding compound meets UL 94V-0 flammability

📥 Download Datasheet

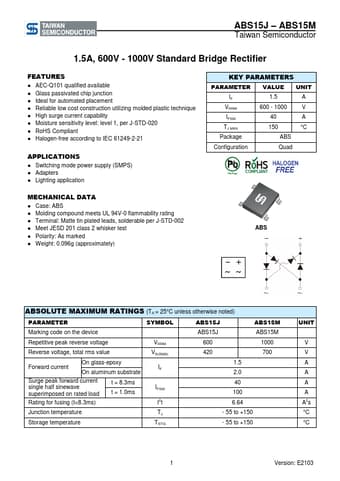

Preview of ABS15J PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ABS15J
Manufacturer
Taiwan Semiconductor
File Size
422.22 KB
Datasheet
ABS15J-TaiwanSemiconductor.pdf
Description
Standard Bridge Rectifier
