ABS151

SINGLE PHASE 1.5AMP SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

ABS151 Features

* Glass passivated die construction

* Low forward voltage drop

* High current capability

* High surge current capability

* Designed for surface mount application

* Plastic material-UL flammability 94V-0 0.165(4.2) 0.150(3.8) 0.268(6.8) 0.236(6.0) ABS 0.010(0.25) 0.006(0.1

ABS151 Datasheet (1.37 MB)

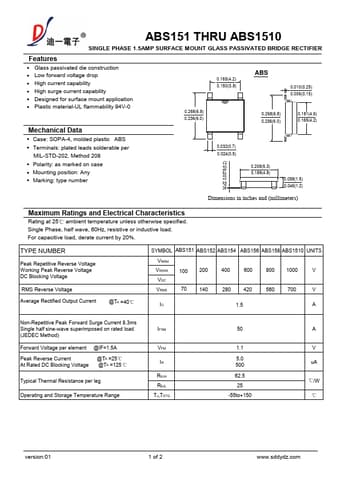

Preview of ABS151 PDF

Datasheet Details

Part number:

ABS151

Manufacturer:

ETC

File Size:

1.37 MB

Description:

Single phase 1.5amp surface mount glass passivated bridge rectifier.
