ABS1506

Bridge Rectifier

ABS1506 Features

* UL recognition, file #E313149

* Ideal for automated placement

* Glass passivated chip junction

* High surge current capability

* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Typical Applications General purpose use in AC/DC bridge full wave rectification for SMPS

ABS1506 Datasheet (247.72 KB)

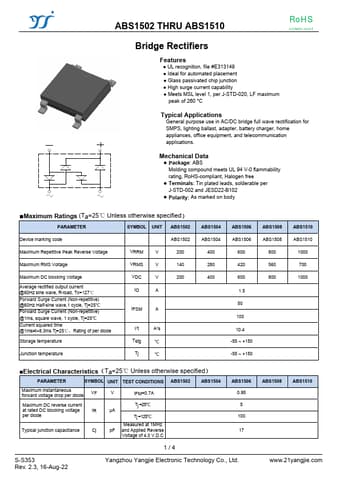

Preview of ABS1506 PDF

Datasheet Details

Part number:

ABS1506

Manufacturer:

Yangzhou Yangjie

File Size:

247.72 KB

Description:

Bridge rectifier.
