ABS6-HF

SMD Glass Passivated Bridge Rectifiers

ABS6-HF Features

* -Rating to 1000V PRV. -Ideal for printed circuit board. -Reliable low cost construction utilizing molded plastic technique results in inexpensive product. -Small size, simple installation -High surge current capability -Pb free product. 0.205 (5.20) 0.189 (4.80) 0.006 (0.15) 0.002 (0.05) 0.181 (4.60

ABS6-HF Datasheet (96.70 KB)

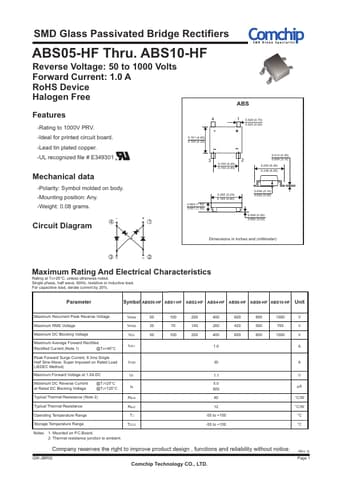

Preview of ABS6-HF PDF

Datasheet Details

Part number:

ABS6-HF

Manufacturer:

Comchip

File Size:

96.70 KB

Description:

Smd glass passivated bridge rectifiers.
SMD Glass Passivated Bridge Rectifiers ABS05-HF Thru. ABS10-HF Reverse Voltage: 50 to 1000 Volts Forward Current: 1.0 A RoHS Device Halogen Free Feat.
