BC847AW-G - Small Signal Transistor

Product Overview

Comchip

📥 Download Datasheet

BC847AW-G Small Signal Transistor by Comchip - Datasheet Preview — Datasheet preview – BC847AW-G

Datasheet Details

Part number	BC847AW-G
Manufacturer	Comchip
File Size	121.18 KB
Description	Small Signal Transistor
Datasheet	BC847AW-G Datasheet
Note	This datasheet PDF includes multiple part numbers: BC847AW-G, BC846AW-G. Please refer to the document for exact specifications by model.

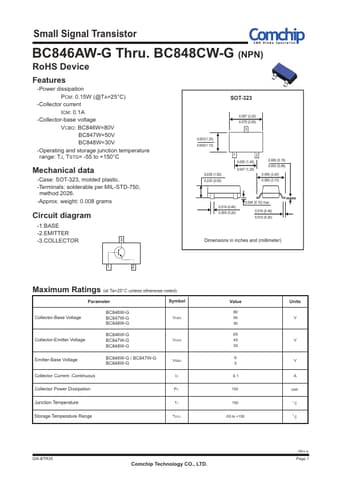

Additional preview pages of the BC847AW-G datasheet.

Product details

Features

-Power dissipation PCM: 0.15W (@TA=25°C) -Collector current ICM: 0.1A -Collector-base voltage VCBO: BC846W=80V BC847W=50V BC848W=30V -Operating and storage junction temperature range: TJ, TSTG= -55 to +150°C Mechanical data -Case: SOT-323, molded plastic. -Terminals: solderable per MIL-STD-750, method 2026. -Approx. weight: 0.008 grams Circuit diagram -1.BASE -2.
