BC847A-Q - 100mA NPN general-purpose transistors

This page provides the datasheet information for the BC847A-Q, a member of the BC847-Q 100mA NPN general-purpose transistors family.

Datasheet Summary

Description

NPN general-purpose transistors in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.

Table 1.

Features

  • General-purpose transistors.
  • SMD plastic packages.
  • Three different gain selections.
  • Qualified according to AEC-Q101 and recommended for use in automotive.

📥 Download Datasheet

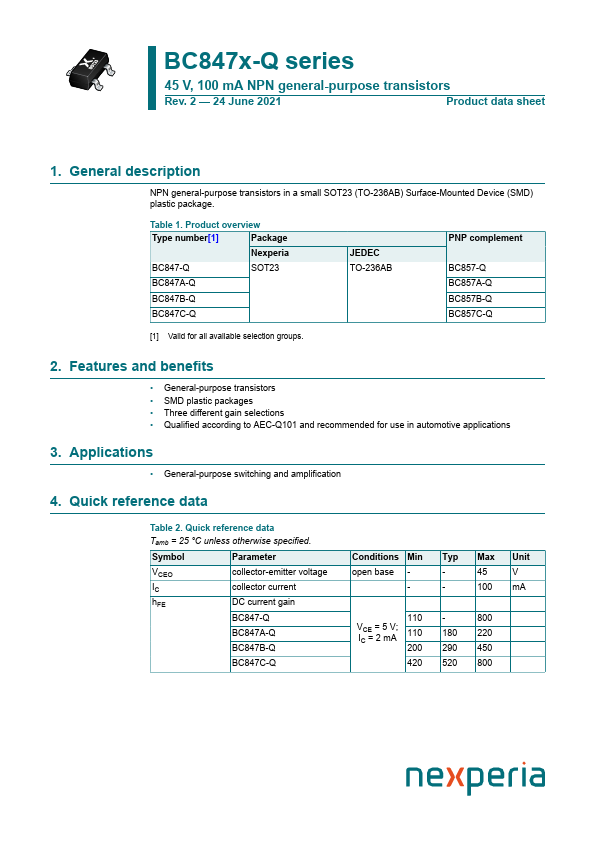

Datasheet preview – BC847A-Q

Datasheet Details

Part number BC847A-Q
Manufacturer nexperia
File Size 220.86 KB
Description 100mA NPN general-purpose transistors
Datasheet download datasheet BC847A-Q Datasheet

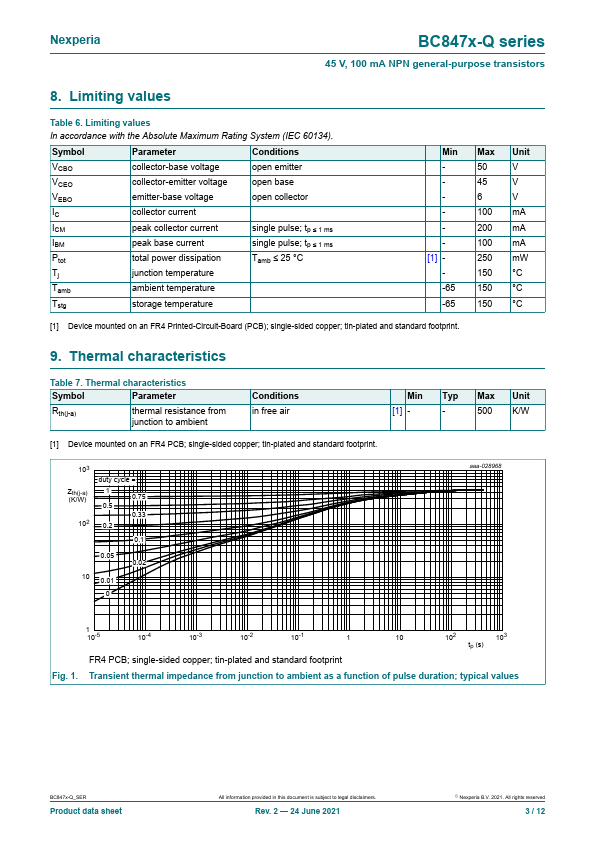

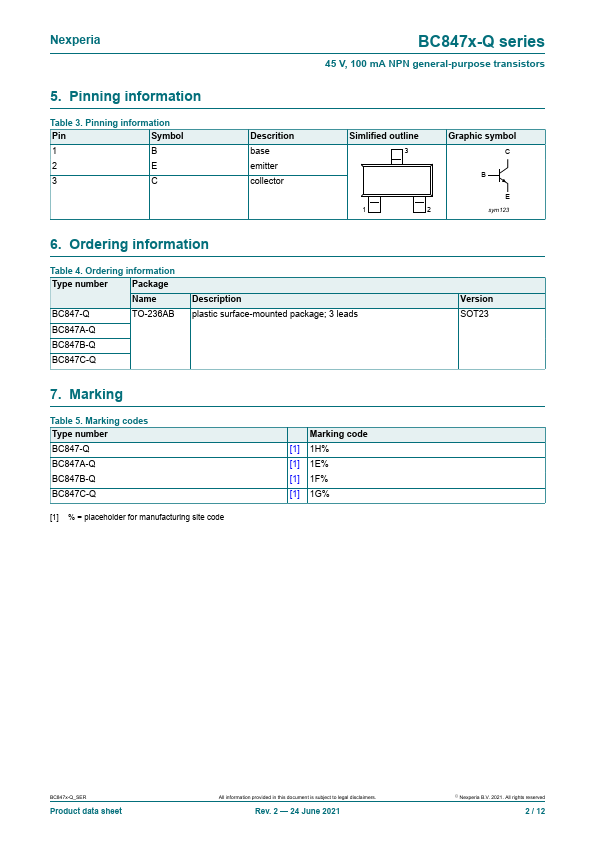

Additional preview pages of the BC847A-Q datasheet.

📁 Similar Datasheet

  • BC847A-G - Small Signal Transistor (Comchip)
  • BC847A - NPN Silicon AF Transistors (Infineon)
  • BC847A - NPN General Purpose Amplifier (Fairchild Semiconductor)
  • BC847A - NPN Transistor (Micro Commercial Components)
  • BC847A - General Purpose Transistors (ON Semiconductor)
  • BC847A - NPN Transistor (GME)
  • BC847A - SMD General Purpose NPN Transistors (Diotec Semiconductor)
  • BC847A - NPN Silicon Planar Epitaxial Transistors (RECTRON)
  • BC847A - NPN SILICON TRANSISTOR (UTC)
  • BC847A - NPN General Purpose Transistor (Multicomp)
Other Datasheets by nexperia
  • BC847A - 100mA NPN transistors
  • BC847AM - 100mA NPN general-purpose transistors
  • BC847AMB - 100mA NPN general-purpose transistors
  • BC847AQA - 100mA NPN general-purpose transistors
  • BC847AQB - 100mA NPN general-purpose transistor
  • BC847AQC-Q - 100mA NPN general-purpose transistor
  • BC847AW - 100mA NPN general-purpose transistors
  • BC847 - 100mA NPN Transistor

Full PDF Text Transcription

Click to expand full text
BC847x-Q series 45 V, 100 mA NPN general-purpose transistors Rev. 2 — 24 June 2021 Product data sheet 1. General description NPN general-purpose transistors in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package. Table 1. Product overview Type number[1] Package Nexperia BC847-Q SOT23 BC847A-Q BC847B-Q BC847C-Q JEDEC TO-236AB PNP complement BC857-Q BC857A-Q BC857B-Q BC857C-Q [1] Valid for all available selection groups. 2. Features and benefits • General-purpose transistors • SMD plastic packages • Three different gain selections • Qualified according to AEC-Q101 and recommended for use in automotive applications 3. Applications • General-purpose switching and amplification 4. Quick reference data Table 2.
