BC847AQC-Q Datasheet - nexperia

BC847AQC-Q 100mA NPN general-purpose transistor

NPN general-purpose transistor in an ultra small DFN1412D-3 (SOT8009) leadless SurfaceMounted Device (SMD) plastic package with side-wettable flanks. Table 1. Product overview Type number BC847AQC-Q BC847BQC-Q BC847CQC-Q Package Nexperia SOT8009 JEDEC MO-340CA PNP complement: BC857AQC-Q BC857BQ.

BC847AQC-Q Features

* High power dissipation capability

* Suitable for Automatic Optical Inspection (AOI) of solder joint

* Smaller footprint compared to conventional leaded SMD packages

* Low package height of 0.5 mm

* Qualified according to AEC-Q101 and recommended for use in a

BC847AQC-Q-nexperia.pdf

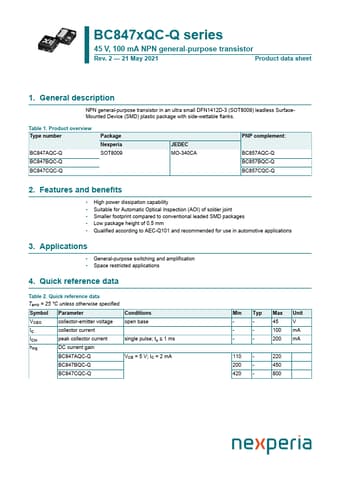

Preview of BC847AQC-Q PDF
BC847AQC-Q Datasheet Preview Page 2 BC847AQC-Q Datasheet Preview Page 3

Datasheet Details

Part number:

BC847AQC-Q

Manufacturer:

nexperia ↗

File Size:

255.58 KB

Description:

100ma npn general-purpose transistor.
