BR50005-G - Silicon Bridge Rectifiers

Comchip

📥 Download Datasheet

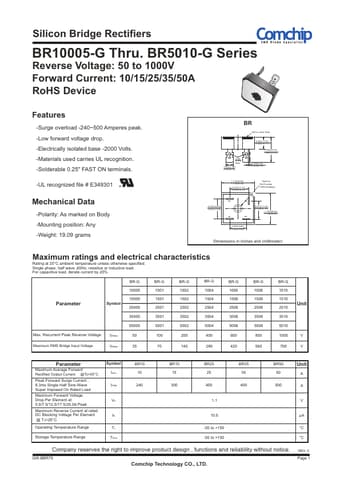

BR50005-G Datasheet Preview — Preview of BR50005-G PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BR50005-G
Manufacturer	Comchip
File Size	66.68 KB
Description	Silicon Bridge Rectifiers
Datasheet	BR50005-G-Comchip.pdf

BR50005-G Product details

Features

-Surge overload -240~500 Amperes peak. -Low forward voltage drop. -Electrically isolated base -2000 Volts. -Materials used carries UL recognition. -Solderable 0.25" FAST ON terminals. -UL recognized file # E349301 R Mechanical Data -Polarity: As marked on Body -Mounting position: Any -Weight: 19.09 grams BR METAL HEAT SINK 0.94 (2.40) diam 0.254(6.45) 0.242(6.15) 0.442(11.23) 0.424(10.77) 0.925(23.50) 0.886(22.50) 0.035(0.90) 0.028(0.70) 1.133(28.80) 1.114(28.30) 0.673(17.10) 0.634(16.10).
