BR50005

Bridge Rectifier

BR50005 Features

* Io 50A

* VRRM 50V~1000V

* High surge forward current capability

* Applications

* General purpose 1 phase Bridge rectifier applications

* Outline Dimensions and Mark 1.13(28.8) PLASTIC.488(121.4.1) 1(28.2) .409(10.4) Hole for 1.13(28.8) No.10 Screw 1.11(28.2)

BR50005 Datasheet (434.08 KB)

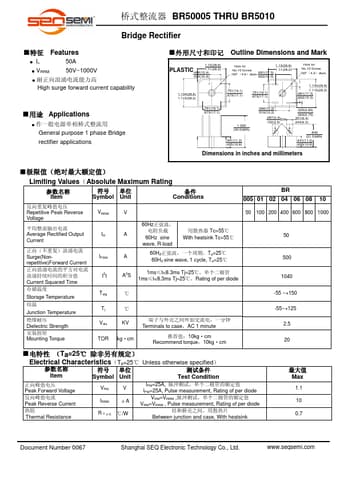

Preview of BR50005 PDF

Datasheet Details

Part number:

BR50005

Manufacturer:

SEQ

File Size:

434.08 KB

Description:

Bridge rectifier.
