GBU8005-G - Glass Passivated Bridge Rectifiers

GBU8005-G Description

Glass Passivated Bridge Rectifiers GBU8005-G Thru.GBU810-G Reverse Voltage: 50 to 1000V Forward Current: 8.0A RoHS Device .

GBU8005-G Features

* -Surge overload rating -200 amperes peak. -Ideal for printed circuit board. -UL recognized file # E217139 R Mechanical Data -Epoxy: U/L 94V-0 rate flame retardant. -Case: Molded plastic, GBU -Mounting position: Any -Weight: 3.91 gram (approx. ). GBU Backside 0.437(11.1) 0.430(10.9) 0.874(22.2) 0.

📥 Download Datasheet

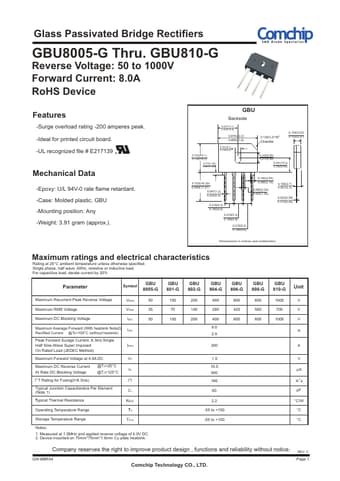

Preview of GBU8005-G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GBU8005-G
Manufacturer
Comchip
File Size
73.60 KB
Datasheet
GBU8005-G-Comchip.pdf
Description
Glass Passivated Bridge Rectifiers
