GBU804LC, GBU802LC - Low VF Bridge Rectifier

GBU804LC Description

ZOWIE Low VF Bridge Rectifier (200V~600V / 8.0A) GBU802LC THRU GBU806LC .

GBU804LC Features

* Internal structure with GPRC (glass passivated rectifier chip) inside
* Compliance to RoHS product
* Low forward voltage drop
* Superior thermal conductivity
* Ideal for printed circuit boards
* Plastic package has Underwriters Laboratory Flammability Classification 94V-0

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GBU804LC, GBU802LC. Please refer to the document for exact specifications by model.

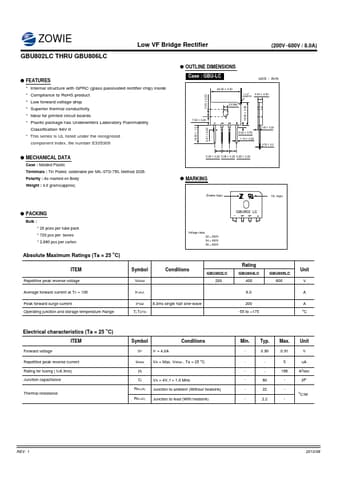

datasheet Preview Page 2

Datasheet Details

Part number
GBU804LC, GBU802LC
Manufacturer
ZOWIE
File Size
62.45 KB
Datasheet
GBU802LC-ZOWIE.pdf
Description
Low VF Bridge Rectifier
Note
This datasheet PDF includes multiple part numbers: GBU804LC, GBU802LC.
Please refer to the document for exact specifications by model.
