HER303-G - Efficient Fast Recovery Rectifiers

This page provides the datasheet information for the HER303-G, a member of the HER301-G Efficient Fast Recovery Rectifiers family.

Datasheet Summary

Features

  • -Glass passivated chip. -Low forward voltage. -High reliability. -High surge current capability. -High speed switching. Mechanical data -Case: JEDEC DO-27 molded plastic. -Epoxy: UL 94V-0 rate flame retardant. -Polarity: Color band denotes cathode end. -Lead: Solderable per MIL-STD-202, method 208 guaranteed. -Mounting position: Any -Weight: 0.844 grams.

📥 Download Datasheet

Datasheet preview – HER303-G

Datasheet Details

Part number HER303-G
Manufacturer Comchip
File Size 45.79 KB
Description Efficient Fast Recovery Rectifiers
Datasheet download datasheet HER303-G Datasheet
Additional preview pages of the HER303-G datasheet.

📁 Similar Datasheet

  • HER303 - High Efficiency Rectifiers (Eris)
  • HER303 - 3A High Efficiency Diodes (Leshan Radio Company)
  • HER303 - HIGH EFFICIENCY RECTIFIER (Rectron Semiconductor)
  • HER303 - 3.0A HIGH EFFICIENCY RECTIFIER (Diodes Incorporated)
  • HER303 - 3.0 Amp High Efficient Rectifiers (Micro Commercial Components)
  • HER303 - HIGH EFFICIENCY RECTIFIER (GOOD-ARK Electronics)
  • HER303 - 3.0 AMP HIGH EFFICIENCY RECTIFIERS (Formosa MS)
  • HER303 - TECHNICAL SPECIFICATIONS OF HIGH EFFICIENCY RECTIFIER (Dc Components)
  • HER303 - HIGH EFFICIENT RECTIFIER DIODES (EIC discrete Semiconductors)
  • HER303 - 3.0A ULTRAFAST DIODE (WON-TOP)
Other Datasheets by Comchip
  • HER301-G - Efficient Fast Recovery Rectifiers
  • HER302-G - Efficient Fast Recovery Rectifiers
  • HER304-G - Efficient Fast Recovery Rectifiers
  • HER305-G - Efficient Fast Recovery Rectifiers
  • HER306-G - Efficient Fast Recovery Rectifiers
  • HER307-G - Efficient Fast Recovery Rectifiers
  • HER308-G - Efficient Fast Recovery Rectifiers
  • HER101-G - Efficient Fast Recovery Rectifiers

Full PDF Text Transcription

Click to expand full text

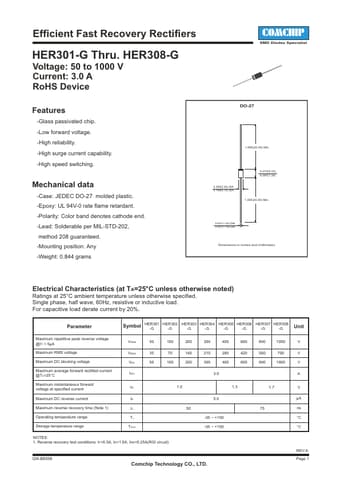

Efficient Fast Recovery Rectifiers HER301-G Thru. HER308-G Voltage: 50 to 1000 V Current: 3.0 A RoHS Device Features -Glass passivated chip. -Low forward voltage. -High reliability. -High surge current capability. -High speed switching. Mechanical data -Case: JEDEC DO-27 molded plastic. -Epoxy: UL 94V-0 rate flame retardant. -Polarity: Color band denotes cathode end. -Lead: Solderable per MIL-STD-202, method 208 guaranteed. -Mounting position: Any -Weight: 0.844 grams COMCHIP SMD Diodes Specialist DO-27 1.000(25.40) Min. 0.209(5.30) DIA. 0.189(4.79) DIA. 0.375(9.53) 0.285(7.24) 1.000(25.40) Min. 0.051(1.30) DIA. 0.047(1.19) DIA.
